C100B White Pebble Grain Facing

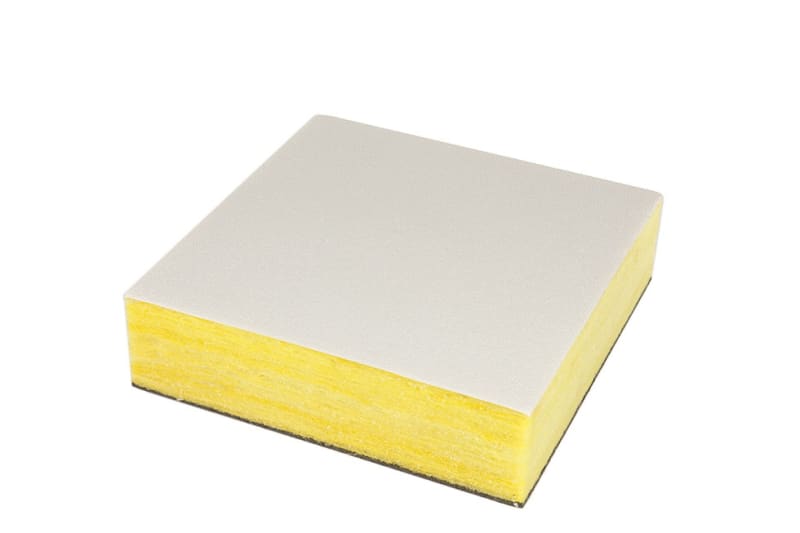

White Pebble Grain Finish Acoustic Ceiling Tile with MLV for Soundproofing

Alternative Views:


Product Code: C100B
Request Quote

Description


Ambience C100B Ceiling Tile with Soundproof Barrier

Download the pdf


Applications:

  • Offices
  • Conference Rooms
  • Call Centers
  • Restaurants
  • Schools, classrooms
  • Auditoriums
  • Gymnasiums

C100 Details:

  • Improves acoustic performance within the room
  • Includes additional Sound Barrier (MLV 1# with foil) in 1-1/8” or 2-1/8” thickness
  • White Pebble Grain Finish
  • For Lay-In grid application
  • Additional wires required to support weight
  • Up to 1.05 NRC
  • Up to 26 STC
  • Distinguished style
  • Class A fire rated, per ASTM E-84

Ambience C100B Ceiling Tiles: Sound Absorption (octave frequencies in Hz)
Product Nominal Size Weight (lbs/tile) 125 250 500 1000 2000 4000 NRC
C100B 1" x 2' x 2' 6 0.14 0.27 0.8 1.11 1.14 1.14 0.85
C100B 1" x 2' x 4' 12 0.14 0.27 0.8 1.11 1.14 1.14 0.85
C100B 2" x 2' x 2' 8 0.22 0.81 1.24 1.3 1.21 1.16 1.15
C100B 2" x 2' x 4" 16 0.22 0.81 1.24 1.3 1.21 1.16 1.15
Ambience C100B Ceiling Tiles Noise Barrier STC (octave frequencies in Hz)
Product Thickness 125 250 500 1000 2000 4000 STC
C100B 1" or 2" 13 17 22 26 32 37 26
